Atlantic Deep Water Aeration Kit

Vendor: OASE
SKU: ATL/TPD100S-87R6
Product Type: Pond Aerators
$3,302.99
$3,302.99
Size: 1 acre

Atlantic Water Gardens Deep Water Aeration Systems are equipped with everything you need for upgrading your system, including tubing, diffusers and fittings. The cabinets come with vented heavy-duty double-walled cabinet, integrated high output cooling fan, filtered air intake, rocking piston air compressor, manifold assembly, flow adjusters, oil-filled pressure gauge and pressure relief valve installed

  • Easily adjusted manifold assemblies provide flow control to multiple diffusers;
  • Designed to work in ponds at least 8' deep;
  • 2 year warranty.
SKU UPC Code Description Included Components

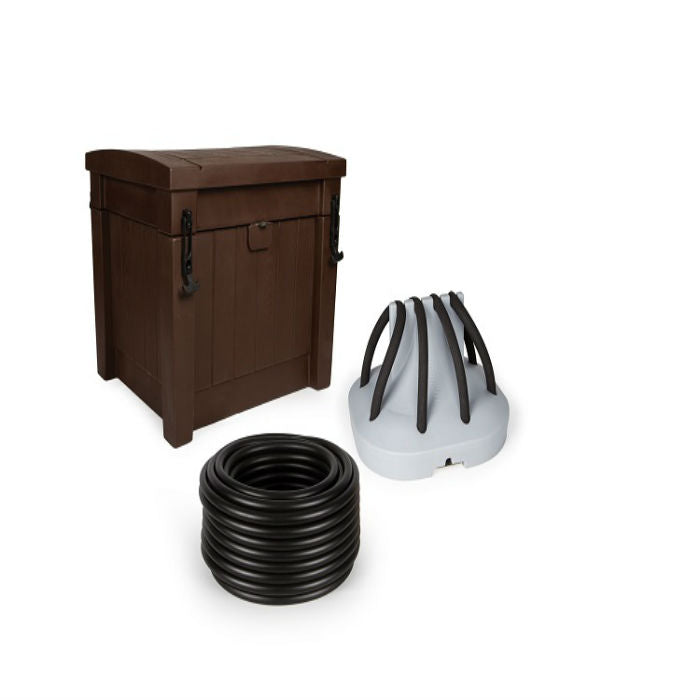

ATL/TPD100S-87R6 727429120217 1-Diffuser
Deep Water
System
Deep water cabinet with 1-outlet manifold
TPD87R6 compressor
TPT38100 weighted tubing
TPDDIF deep water diffuser

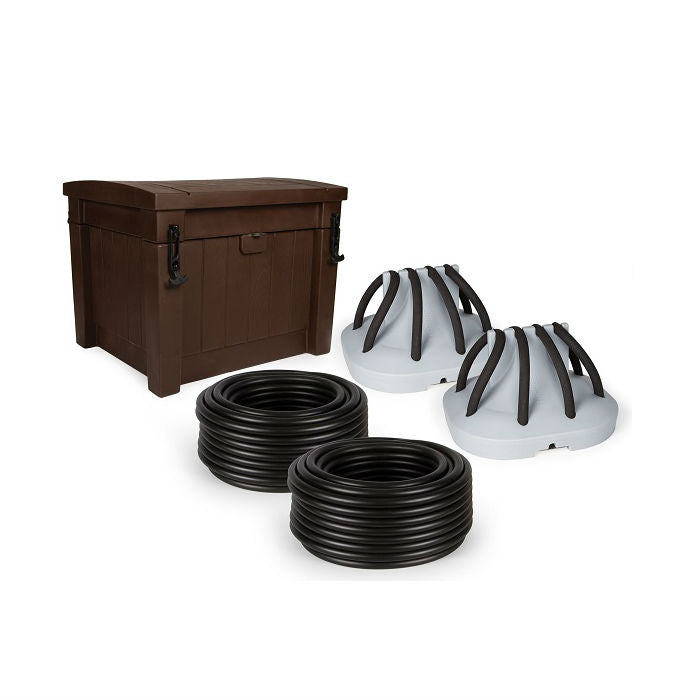

ATL/TPD200S-87R6 727429120231 2-Diffuser
Deep Water
System
Deep water cabinet with 2-outlet manifold
TPD87R6 compressor
(2) TPT38100 weighted tubing
(2) TPDDIF deep water diffuser

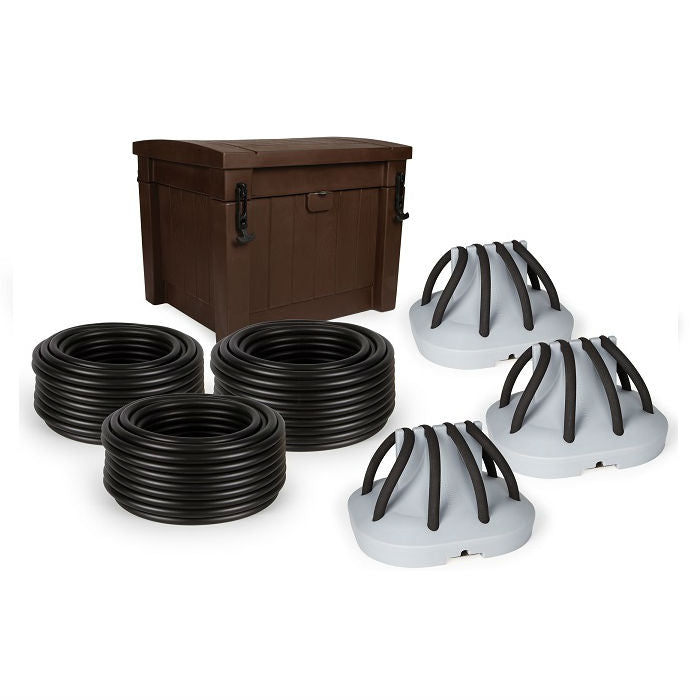

ATL/TPD300S-72R6 727429120163 3-Diffuser
Deep Water
System
Deep water cabinet with 3-outlet manifold
TPD87R6 compressor
(3) TPT38100 weighted tubing
(3) TPDDIF deep water diffuser

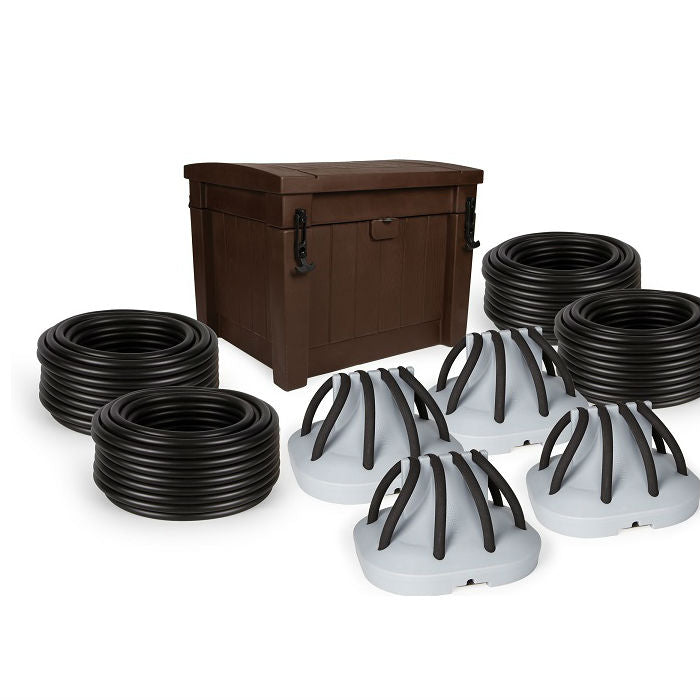

ATL/TPD400S-72R6 727429120187 4-Diffuser
Deep Water
System
Deep water cabinet with 4-outlet manifold
TPD87R6 compressor
(4) TPT38100 weighted tubing
(4) TPDDIF deep water diffuser

Compressor Volts Amps Max
Pressure
Max
Flowrate
Max Pond Size at Given Depth
8' 12' 16' 20'
TPD100S-87R6 115V 4.5A 30psi 130LPM 1/4 acre 1/3 acre 1/2 acre 1 acre
TPD200S-87R6 115V 4.5A 30psi 130LPM 1/2 acre 2/3 acre 1 acre 2 acres
TPD300S-72R6 115V 5.1A 30psi 165LPM 3/4 acre 1 acre 1-1/2 acre 3 acres
TPD400S-72R6 115V 5.1A 30psi 165LPM 1 acre 1-1/3 acre 2 acres 4 acres
