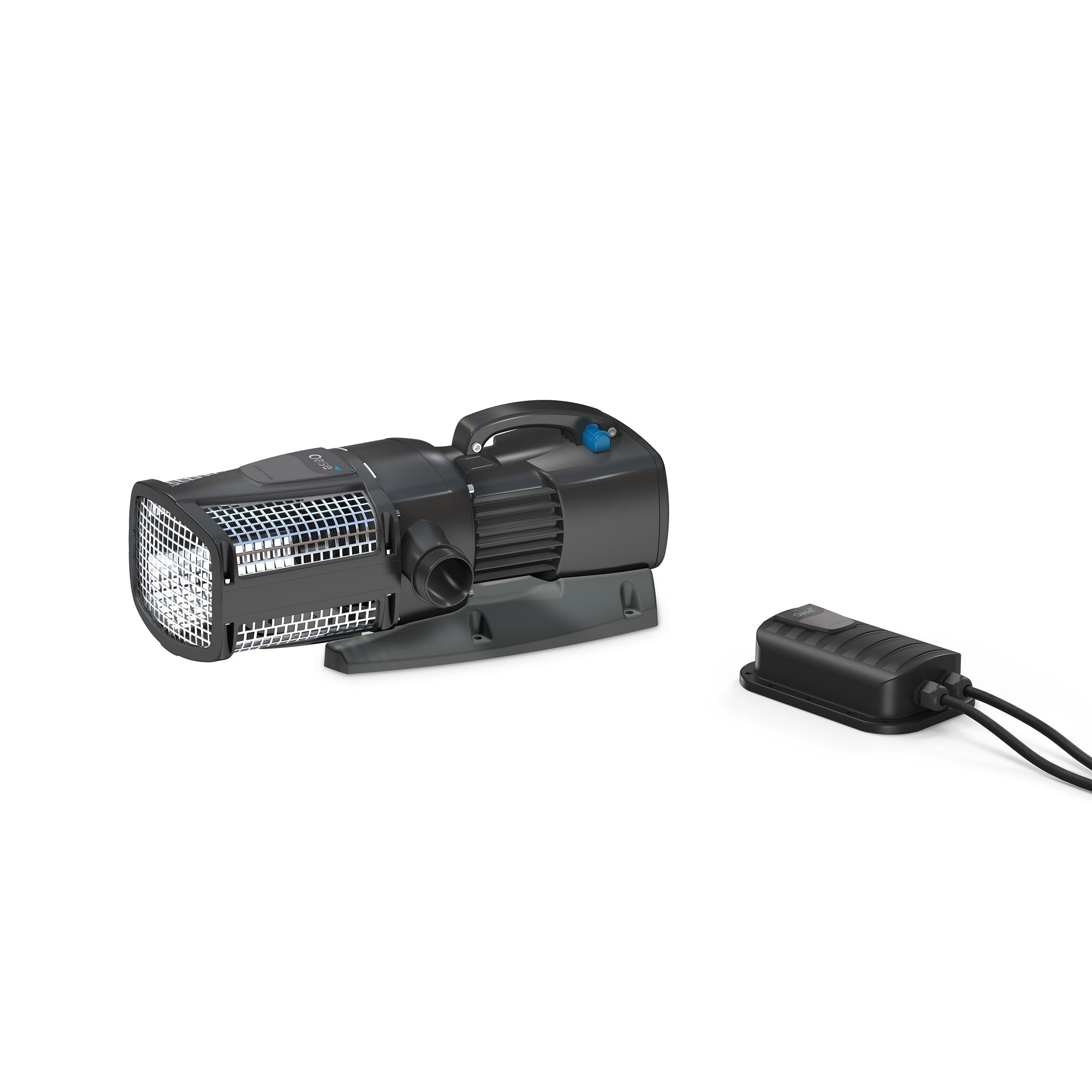

Atlantic Oase Aquamax Eco Expert 12V

Synchronous electronic 12 volt pumps are designed for applications where submersible line voltage pumps are prohibited

OASE AquaMax Eco Premium 12 volt is an energy efficient pump designed specifically for use inline for recreational ponds or in submersible applications

Environmental Function Control (EFC) automatically shuts off the pump if dry run or clogged to prevent pump damage

Pump can be used in-line by removing large-surface, wrap-around pre-filter pre-filter and using mounting bracket to secure

Pump features a grounding plate for unparalled safety

33' 12 volt extension cables available

OASE Brushless DC pumps are powerful, energy efficient filtration pumps for demanding filter systems and large waterfalls. OASE’s AquaMax Eco Expert 12 Volt pumps were designed specifically for recreational ponds where line voltage pumps are prohibited. The patented frost protection protects against freeze damage down to -4°F while grounding plate safeguard against stray currents The integrated Environmental Function Control automatically shuts off the pump in run dry conditions to prevent motor damage. The patented Seasonal Flow Control (SFC) slows flow and reduces wattage up to 50% as water temperatures drop. With submersed or inline installation that come in a variety of water types, including chlorinated pool and salt water. The Eco Control and the EGC Cloud Controller operate and monitor pump remotely. The 33' 12 volt extension cables are available for the AquaMax Eco Expert 12 Volt. The AquaMax Eco Expert 5300 12 Volt has a 100-120V / 50-60Hz of volts, 2.2 amps and a wattage of 260. It has a G2 inlet and a 2” outlet. Its maximum solids size is 0.4375” and has dimensions of 19.25”L x 9.5”W x 8.25”H. It has a 5-year warranty. The AquaMax Eco Expert 5300 12 Volt qualifies for the Clear Water Guarantee when paired with the following filters; ProfiClear Premium Compact-M Pump-fed, ProfiClear Premium Compact-L Pump-fed, ProfiClear Premium Compact-L Gravity-fed and BioTech ScreenMatic² 38000. It’s qualifies with the Bitron C 110 UVC.

The AquaMax Eco Expert has two options to remotely control the pump:

Eco Control

Eco Control is an innovative controller that directly connects to the pump to regulate all functions, with an easy-to-read illuminated two-line display.

The Eco Control standalone controller provides:

*Not useable if the pump is connected to an OC network

Oase Control (OC)

Connect your AquaMax Eco Expert to the Garden Cloud Controller to operate the pump from anywhere in the world on any Android or Apple Device with Oase Control (OC) mobile application.

Oase Control can display and/or control a variety of functions including:

• Seasonal Function Control (SFC)
• Complete adjustment of output flow
• Power consumption read-out
• Pump status and malfunctions display
• Real time rotation speeds
• Total runtime data
• Seasonal Function Control (SFC)
• Complete adjustment of output flow
• Operation status
• Water temperature
• Power consumption
• Overall performance data
• Performance charts over time

Product Brochure: Download PDF
