Atlantic Oase Oase Aquamax Eco Expert 6800 - Egc

Brushless DC pumps are powerful, energy efficient filtration pumps for demanding filter systems and large waterfalls

OASE AquaMax Eco Expert are next generation pumps outstandingly suited for extremely powerful and economical water delivery

Patented frost protection protects against freeze damage down to -4°F while grounding plate safeguards against stray current

Integrated Environmental Function Control automatically shuts off the pump in run dry conditions to prevent motor damage

Patented Seasonal Flow Control (SFC) slows flow and reduces wattage up to 50% as water temperatures drop

Submersed or inline installation in a variety of water types, including chlorinated pool and salt water

Eco Control and Garden Cloud Controller operate and monitor pump remotely

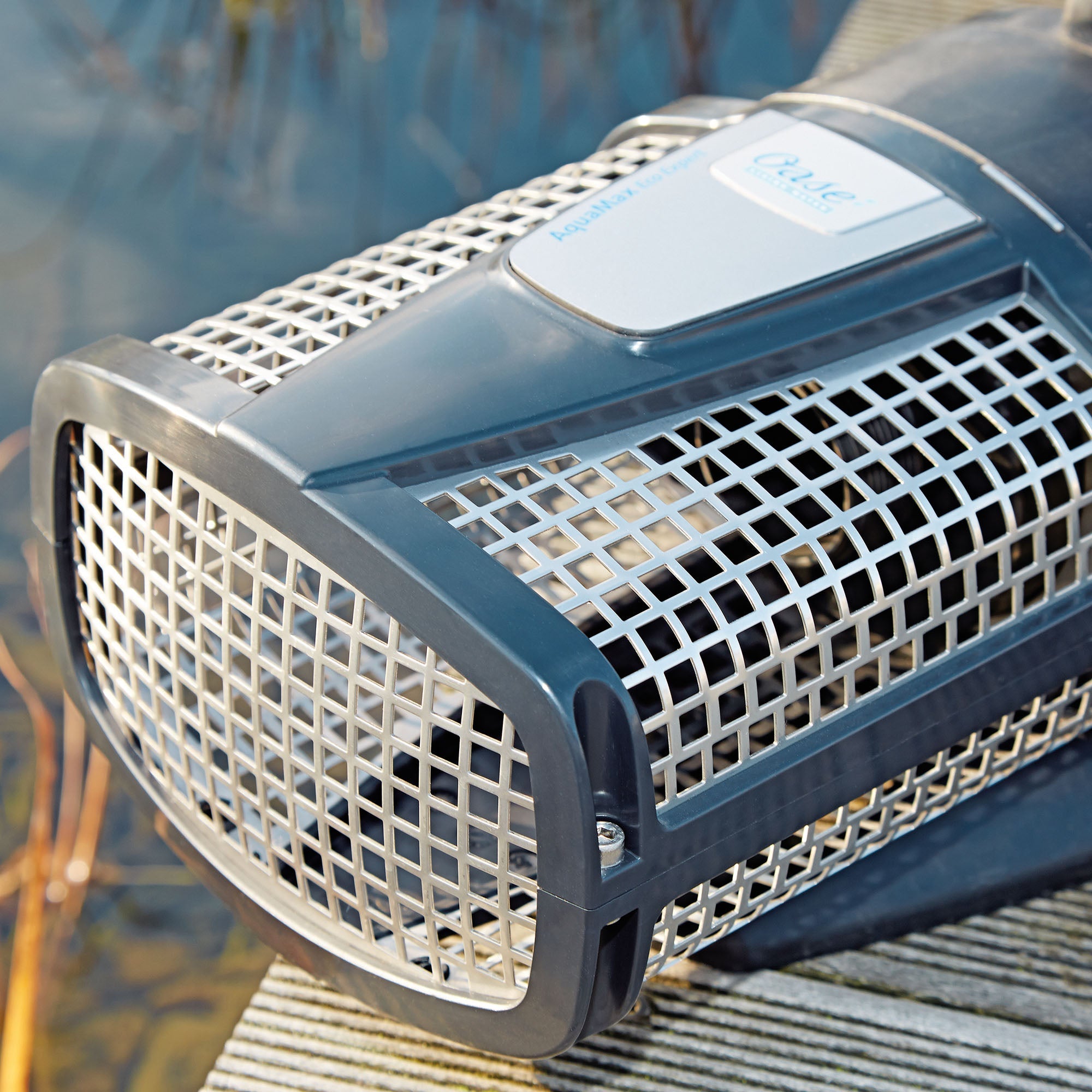

OASE’s AquaMax Eco Expert brushless DC pumps are powerful, energy efficient filtration pumps for demanding filter systems and large waterfalls. OASE AquaMax Eco Expert are next generation pumps outstandingly suited for extremely powerful and economical water delivery. Robust stainless steel intake screen passes debris particles up to 0.44". Unique patented frost protection safeguards pump from freeze damage down to -4°F while integrated grounding plate safeguards against stray current. Integrated Environmental Function Control automatically shuts off the pump in run dry conditions to prevent motor damage. Patented Seasonal Flow Control (SFC) slows water flow, lowers head height and reduces wattage when temperatures drop in response to lower cool season demand, for up to 50% energy savings. Submersed or inline installation in a variety of water types, including chlorinated pool and salt water. Eco Control and Garden Cloud Controller operate and monitor pump remotely; Eco Control via manual control, Garden Cloud Controller via wifi application. Unlike Direct Drive pumps, which are susceptible to suction cavitation and pump damage, the AquaMax Eco Expert has no minimum head height for operation. It qualifies for the OASE Clear Water Guarantee when paired with the proper filter and UVC Clarifier. The AquaMax Eco Expert 6800 has 220-240V / 50-60 Hz, 2 amps and a 2” outlet. It has a 33’ power cord, dimensions of 19”L x 8.5”W x 8”H and a Sch40 1.5”-2” adapter. The AquaMax Eco Expert 6800 has a max flow of 6800 GPH and a 5-year warranty.

The AquaMax Eco Expert has two options to remotely control the pump:

Eco Control

Eco Control is an innovative controller that directly connects to the pump to regulate all functions, with an easy-to-read illuminated two-line display.

The Eco Control standalone controller provides:

*Not useable if the pump is connected to an OC network

Oase Control (OC)

Connect your AquaMax Eco Expert to the Garden Cloud Controller to operate the pump from anywhere in the world on any Android or Apple Device with Oase Control (OC) mobile application.

Oase Control can display and/or control a variety of functions including:

• Seasonal Function Control (SFC)
• Complete adjustment of output flow
• Power consumption read-out
• Pump status and malfunctions display
• Real time rotation speeds
• Total runtime data
• Seasonal Function Control (SFC)
• Complete adjustment of output flow
• Operation status
• Water temperature
• Power consumption
• Overall performance data
• Performance charts over time

Product Brochure: Download PDF
