Atlantic Oase Garden Controller Cloud

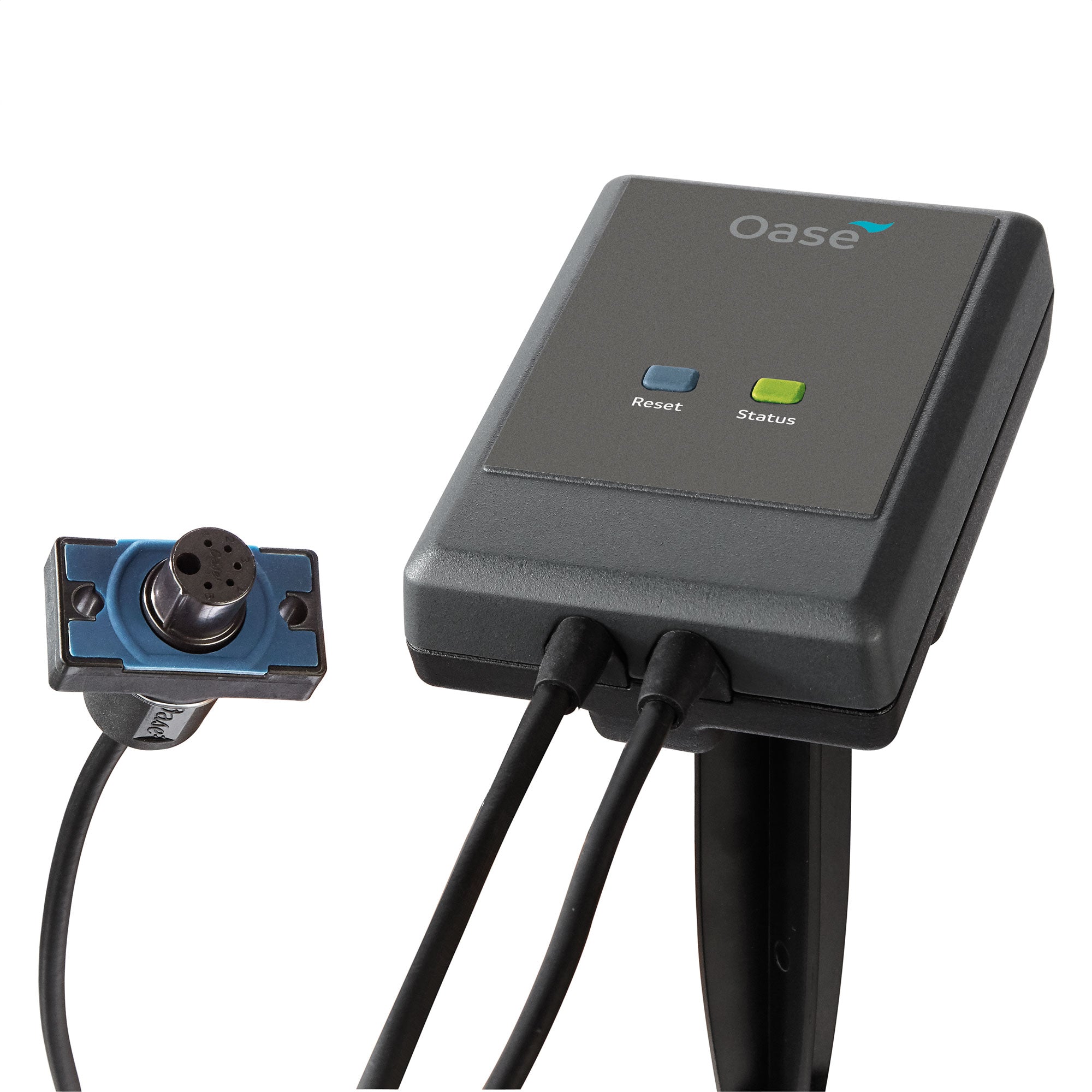

The Garden Cloud Controller operates and monitors Oase Control System devices via WiFi application, either locally or over the internet

OC-enabled filters, pumps, and lights are directly linked to the Garden Cloud Controller with Connection Cables and controlled by the Oase Control App

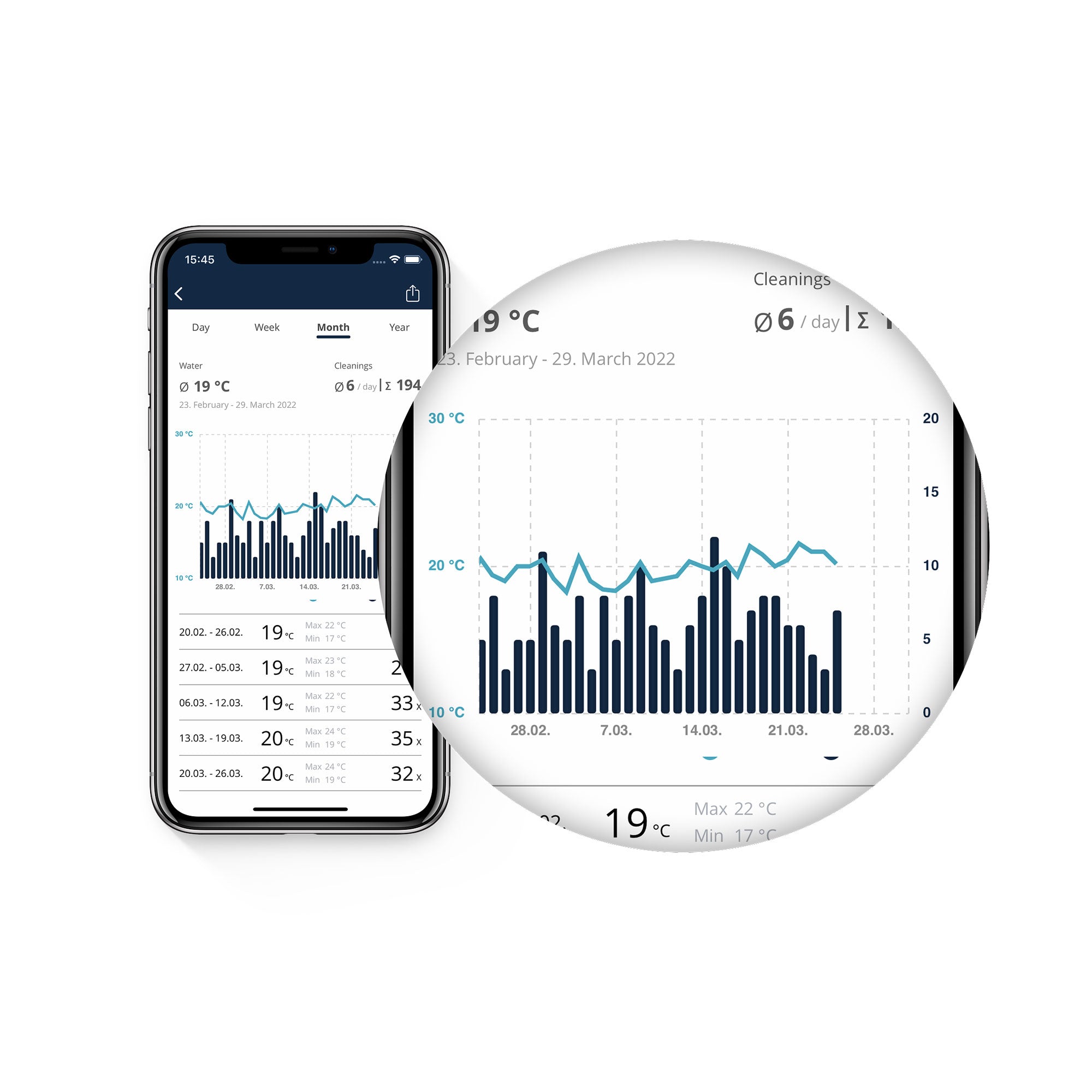

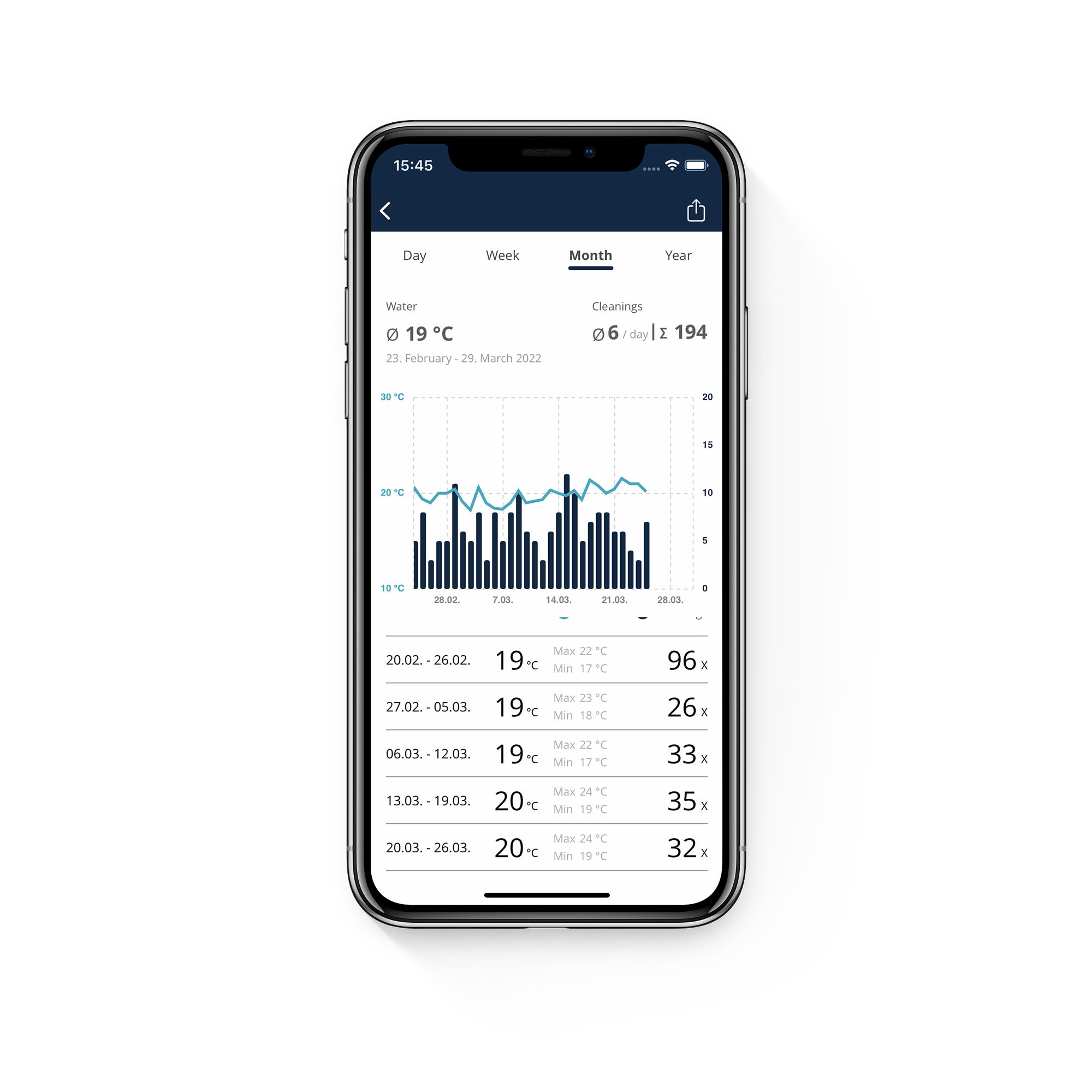

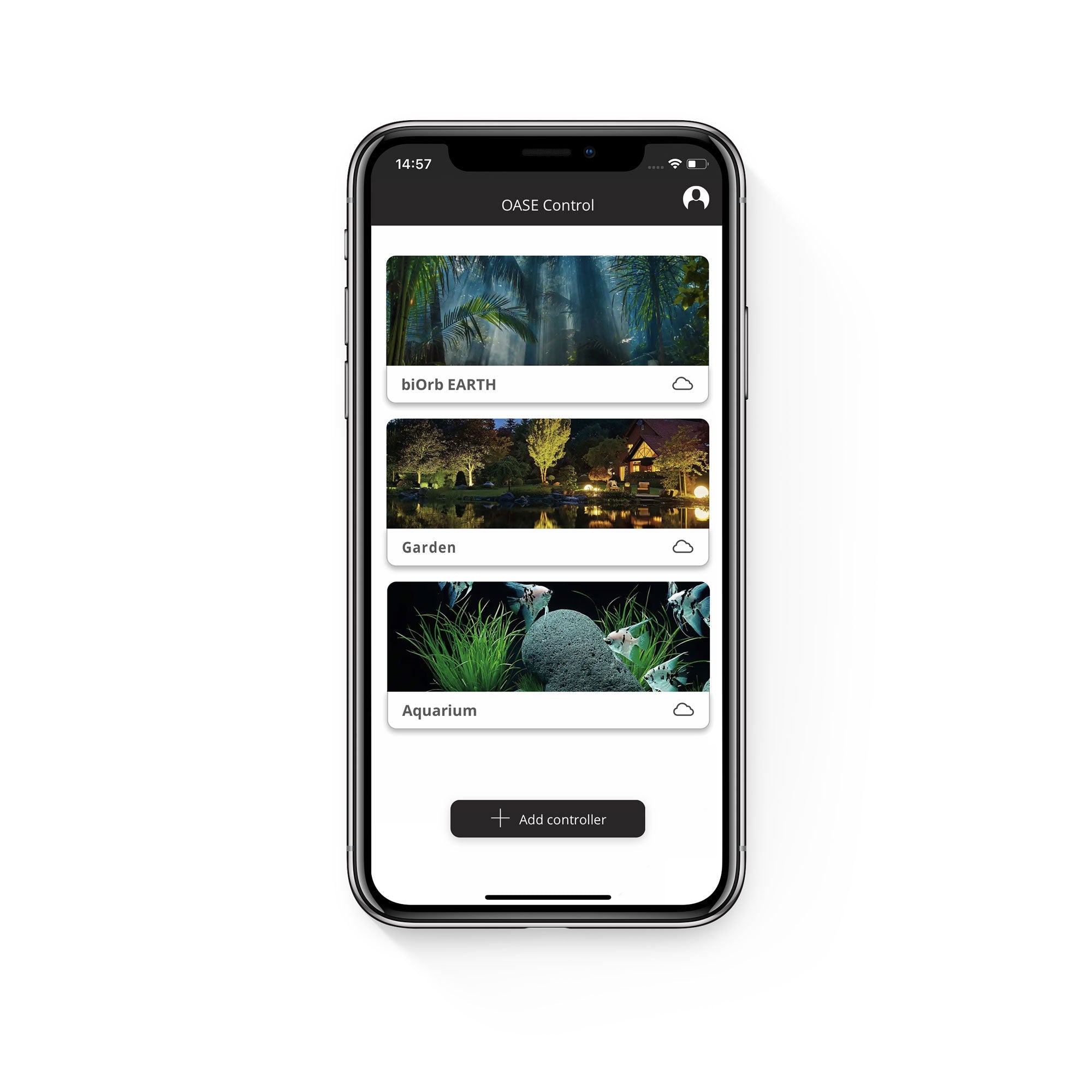

The free Oase Control App individually reads and regulates any combination of up to 10 OC pumps, filters or LED controllers on any Apple or Android platform

For local control of the hardwired network within 260' of the Cloud Controller, the Oase Control application connects directly to the Controller

For world-wide control, link the Cloud Controller to a home router to enable the app to control the devices from anywhere on your mobile device

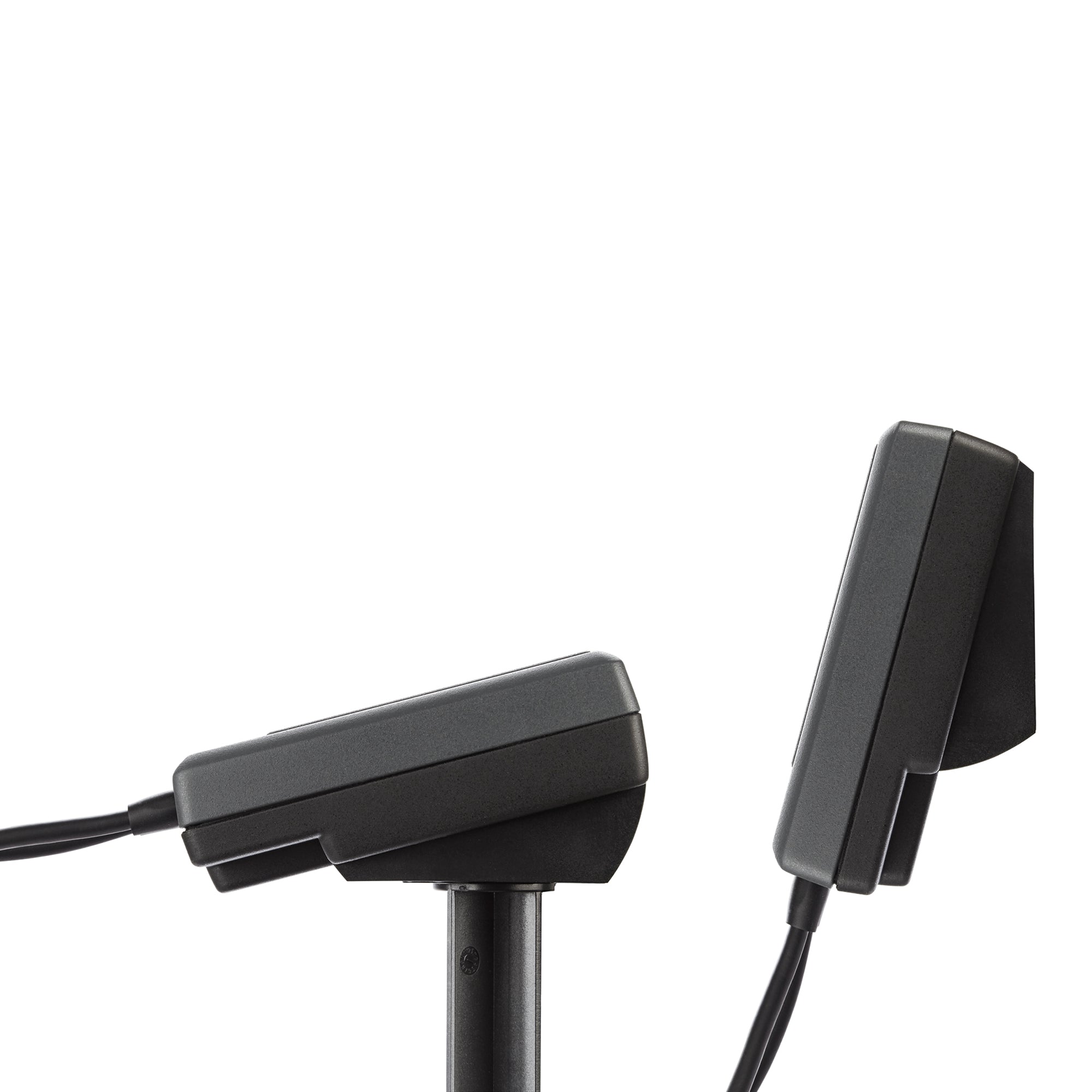

Controller mounts conveniently on a wall or in the ground with included stake and mounting hardware

The controller housing has an IP64 waterproof rating allowing for all-season outdoor use

All compatible devices connect to each other by cables to in/out plugs on devices

All components are individually controlled regardless of their location in the chain of devices

The OASE Control system operates and monitors OC devices via WiFi application, either locally or over the internet. OC-enabled filters, pumps and lights are directly linked to the OC Garden Cloud Controller with Connection Cables and controlled by the OASE Control application. The free Control app individually reads and regulates any combination of up to 10 OC pumps, filters or LED controllers on any Apple or Android platform. For local control of the hardwired network within 260’ of the Cloud Controller, the OASE Control application connects directly to the Controller. Controller mounts conveniently on a wall or in the ground with included stake and mounting hardware. The controller housing has an IP64 waterproof rating allowing for all-season outdoor use. All component are individually controlled regardless of their location in the chain of devices. Includes a 6’ OC connection cable, a 6’ power cable, an End Resistor and a 110V outdoor transformer. OC Compatible devices connect to each other directly with Connection Cables and Connectors, as required. Start the beginning of the run with the OC Cloud Controller. It doesn’t matter what order the devices are connected. Each device is individually addressable and controllable. An End Resistor in the last device will signal the end of the run to the Cloud Controller. Download the Android or iOS “OASE Control” application and install to access the Cloud Controller in one of two ways. Select “Direct (Access Point)” on startup to connect to the Cloud Controller’s internal WiFi from anywhere within a 260’ radius. You may also connect the Cloud Controller directly to your home router for full control from anywhere. Optional router connection will continue to allow Direct Access within 260’. The Cloud Controller is compatible with all Aquarius Eco Expert pumps, all AquaMax Eco Expert pumps, all ProfiClear Premium Compact Filters, all ProfiLux LED RGB Lights, and AquaMax Eco Premium Pulse 6 pumps. The OC Cloud Controller has a 12 volt AC input, a 6’ cord, dimensions of 5.25”W x 3.5”D x 1.5”H and a 3-year warranty.

Product Brochure: Download PDF
