Get ready to unveil an outdoor paradise as this DIY fire pit kit includes a heavy-duty aluminum frame surrounded by a concrete hardboard to complete the basic structure of a fire pit. Crossfire Burner rated at 120K |180K | 290K | 300K BTU that can be specified for either propane or natural gas. Take your backyard fire space to the next level as this kit offers four ignition options: Match Light, 3V spark, 24V spark, and 24V hot surface ignition!
Double the flame, double the satisfaction. Less fuel, no rust, and backed with a Full Lifetime Warranty!
Easily build your dream DIY Custom firepit with Crossfire Square Ready To Finish Fire Pit Kit of Warming Trends!
Features
- Includes - Crossfire burner, burner pan, 36-inch flex line, valve, flange & key, and ignition system;
- Aluminum Frame Enclosure - A durable aluminum framed enclosure features concrete board walls ready to be finished;
- Made of Brass - Heavy-duty brass burner construction guarantees a corrosion-resistant product to ensure low-cost maintenance and lifetime quality. No rust!
- Crossfire™ Burner Design - Innovative burner design with fuel regulation creates taller, brighter, fuller, and more natural flames;
- Ignition Options - Four (4) Unique ignition options available: Match Light, 3V spark, 24V spark, and 24V hot surface ignition;
- Natural Gas or Propane - Accommodates natural gas and propane. The burner system should be specified for natural gas or propane applications and is rated for 120K |180K | 290K | 300K BTU;
- Fuel Efficiency - Propane or natural gas, consume only half the fuel of conventional burners;
- Full Lifetime Warranty - The ‘No rust’ feature is backed by Warming Trends' Full Lifetime Warranty.

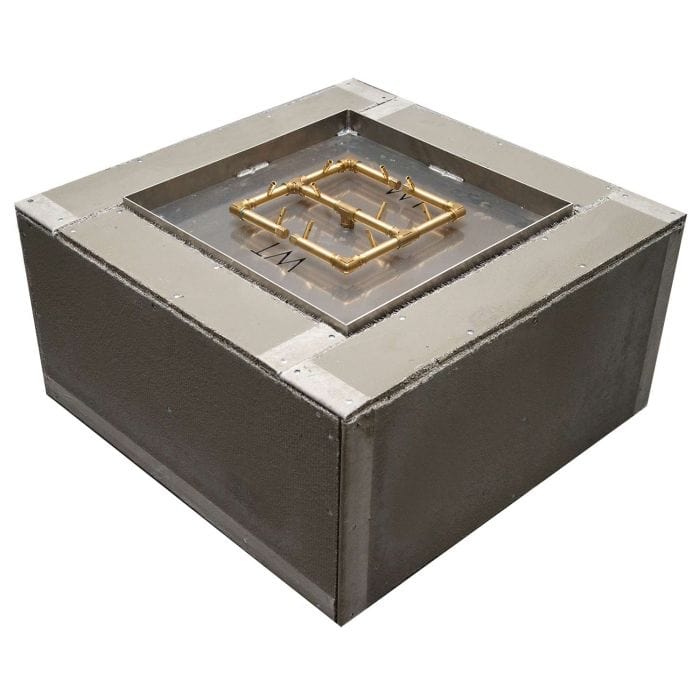

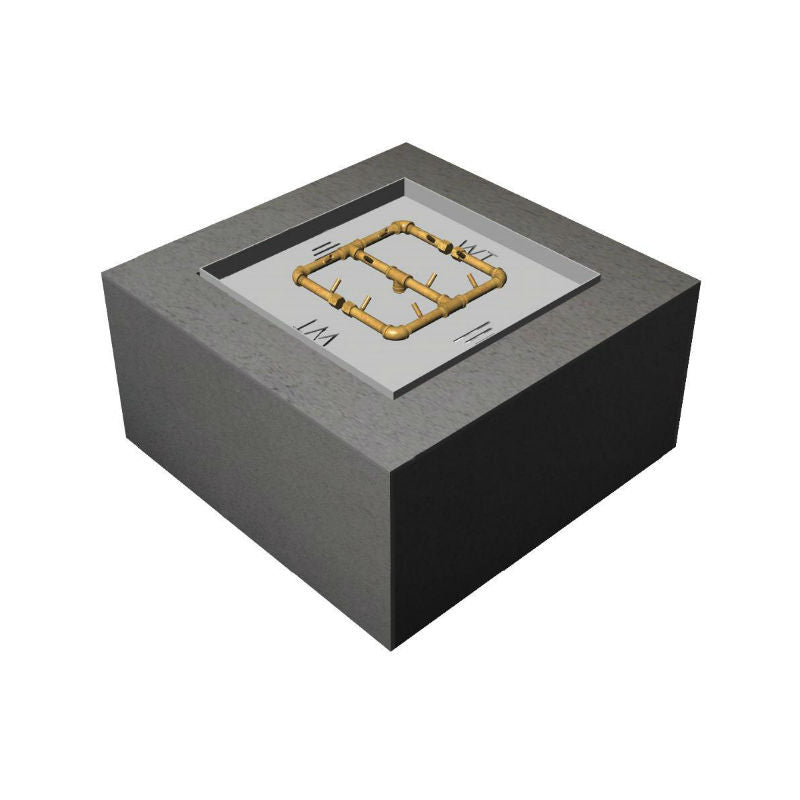

Square Ready To Finish 36"x 36" Fire Pit Kit - FS3636NG | FS3636LP
Dimensions: 36" x 36" W x 18" H Aluminum Frame with Concrete Board Attached.

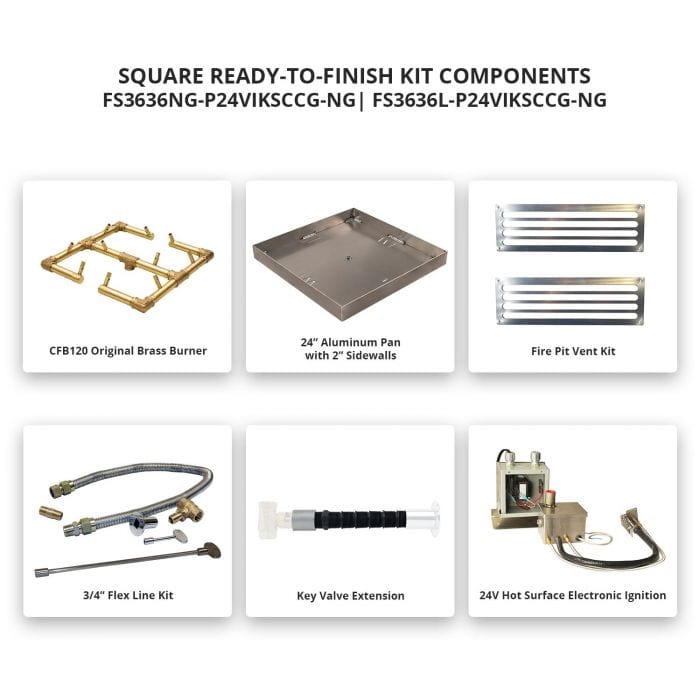

Includes:
- CFB120 Original Brass Burner;
- 24" Aluminum Pan with 2" Sidewalls;
- Fire Pit Vent Kit;
- 3/4" Flex Line Kit;
- Key Valve Extension;
- Ignition Systems Sold Separately: Push Button, 3 Volt, 24 Volt Spark Ignition;
- 24 Volt Hot Surface Ignition (SC).
Ignition systems options available: Push Button, 3 Volt, 24 Volt Spark Ignition, 24 Volt Hot Surface Ignition (SC)

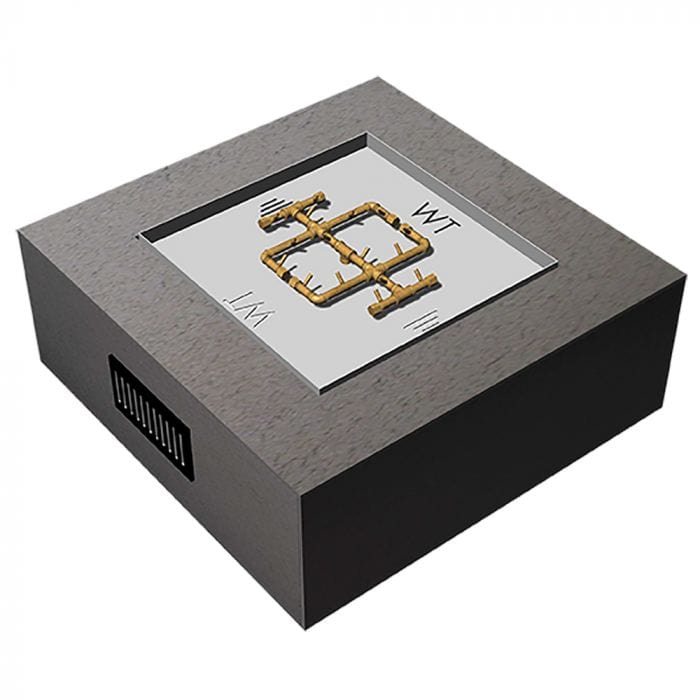

Square Ready To Finish 48"x 48" Fire Pit Kit - FS4848NG | FS4848LP
Dimensions: 48"x 48" W x 18" H Aluminum Frame with Concrete Board Attached.
Includes:
- CFB180 Original Brass Burner;
- 30" Aluminum Pan with 2" Sidewalls;
- Fire Pit Vent Kit;
- 3/4" Flex Line Kit;
- Key Valve Extension.
Ignition systems options available: Push Button, 24 Volt Spark Ignition, 24 Volt Hot Surface Ignition (SC).

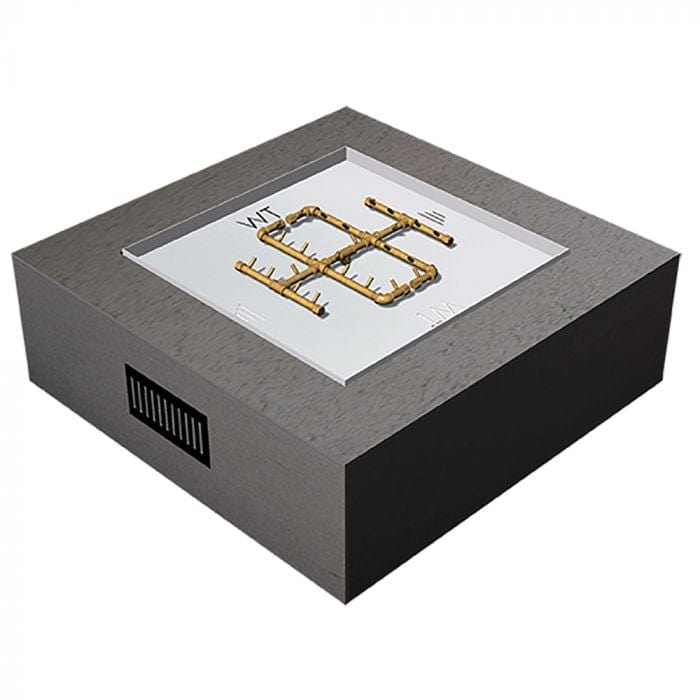

Square Ready To Finish 54"x 54" Fire Pit Kit - FS5454NG | FS5454LP
Dimensions: 54" x 54" W x 18" H Aluminum Frame with Concrete Board Attached.
Includes:
- CFB290 Original Brass Burner;
- 36" Aluminum Pan with 2" Sidewall;
- Fire Pit Vent Kit;
- 3/4" Dual Flex Line Kit;
- Key Valve Extension.
Ignition systems options available: Push Button, 24 Volt Spark Ignition, 24 Volt Hot Surface Ignition (SC).
Square Ready To Finish 60"x 60" Fire Pit Kit - FS6060NG | FS6060LP
Dimensions: 60" x 60" W x 18" H Aluminum Frame with Concrete Board Attached.
Includes:
- CFB300 Original Brass Burner;
- 42" Aluminum Pan with 2" Sidewalls;
- Fire Pit Vent Kit;
- 3/4" Dual Flex Line Kit;
- Key Valve Extension.
Ignition systems options available: Push Button, 24 Volt Spark Ignition, 24 Volt Hot Surface Ignition (SC).
